Deployment

Deployment Guide (AWS, single instance, Ubuntu 18.04 LTS)

Keywords & Official Docs

• SSH Private Key
• AWS EC2
• AWS CodeDepoly
• AWS IAM
• Docker Engine
• Docker Compose
• Github Actions
• Github Actions Secrets

What to Do on the EC2 Instance

The ec2 instance should be at least 2 CPUs and 4~8 GB RAM.
GraphDB requires a lot of RAM, i.e. typically 3GB.

1. SSH to the ec2 instance using private key aws provided.

   ssh -i .\path-to-the-key.pem ubuntu@12.34.56.789

2. Install docker, for more details, see the official guide

   sudo apt update

   sudo apt-get install \

   apt-transport-https \

   ca-certificates \

   curl \

   gnupg-agent \

   software-properties-common

   curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -

   sudo add-apt-repository \

   "deb [arch=amd64] https://download.docker.com/linux/ubuntu \

   $(lsb_release -cs) \

   stable"

   sudo apt-get update

   sudo apt-get install docker-ce docker-ce-cli containerd.io

3. Install docker-compose, for more details, see the official guide

   # To install a different version of Compose, substitute 1.27.2 with the version of Compose you want to use.

   sudo curl -L "https://github.com/docker/compose/releases/download/1.27.2/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose

   sudo chmod +x /usr/local/bin/docker-compose

4. Install CodeDeploy Agent, for more details, see the official guide

   sudo apt-get update

   sudo apt-get install ruby wget

   cd /home/ubuntu

   # https://docs.aws.amazon.com/codedeploy/latest/userguide/resource-kit.html#resource-kit-bucket-names

   # For us-east-2 region only, if you are in other region replace us-east-2 with the region name.

   wget https://aws-codedeploy-us-east-2.s3.us-east-2.amazonaws.com/latest/install

   chmod +x ./install

   sudo ./install auto

5. Set up swap file

   sudo fallocate -l 4G /swapfile

   sudo chmod 600 /swapfile

   sudo mkswap /swapfile

   sudo swapon /swapfile

   sudo echo '/swapfile swap swap defaults 0 0' | sudo tee -a /etc/fstab

What to Do on the AWS Console (Webpage)

1. Login

Set up Secrets on the Github Repository

To create secrets for a user account repository, you must be the repository owner
See the official documentation

1. You will need an IAM account that has Access key ID and Secret access key. The IAM user should have the access to CodeDeploy.

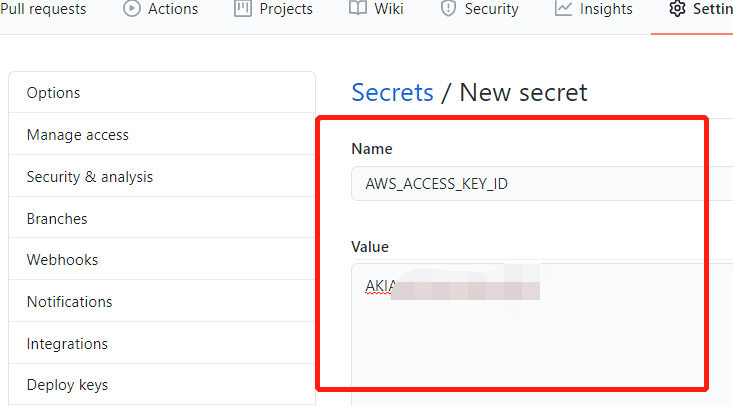

2. Set AWS_ACCESS_KEY_ID to your Access key ID.
   Example:



3. Set AWS_SECRET_ACCESS_KEY to your Secret access key
